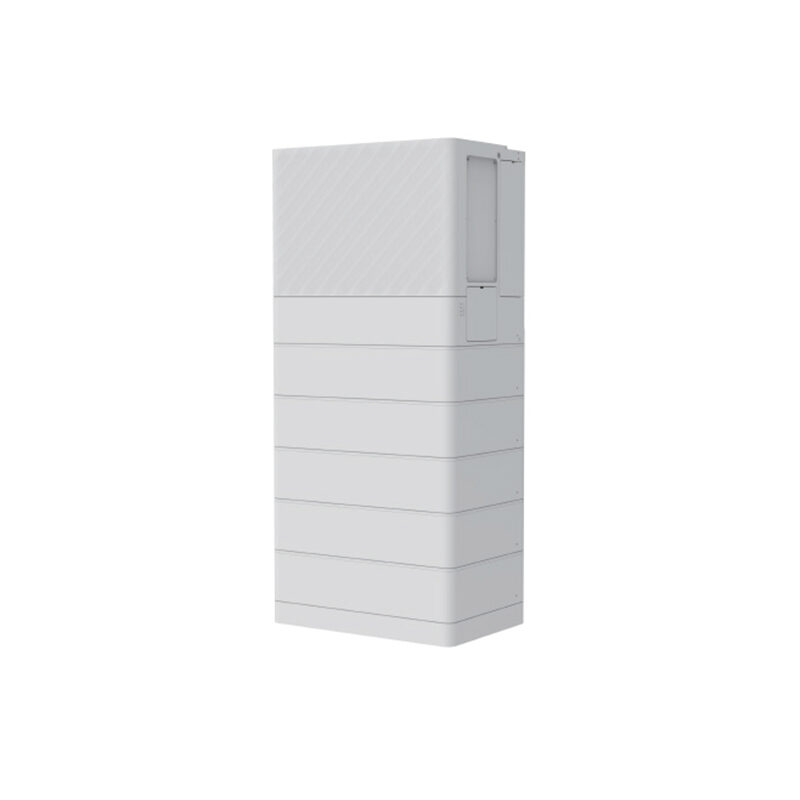

Modular design to meet various backup scenarios.
Integrated configuration, plug and play set-up.
Engineered to last with maximum flexibility. Suitable for outdoor installation.
Monitor your system remotely via smartphone app or web portal.
Bulk pricing, availability, and technical support for installers & dealers.
| MODEL | AO-1D-3.0-US AO-1D-3.8-US | AO-1D-5.0-US AO-1D-5.7-US | AO-1D-6.0-US AO-1D-7.6-US | AO-1D-8.0-US AO-1D-8.6-US | AO-1D-10.0-US AO-1D-11.4-US | |
|---|---|---|---|---|---|---|
| PREPARATORY INPUT SIDE (PV) | ||||||
| Max. PV Input Voltage [V] | 7600 | 7600 | 10200 | 10200 | 22800 | |
| Min. Input Voltage [V] | 600 | |||||
| Start-up Input Voltage [V] | 580 | |||||
| Rated Input Voltage [V] | 380 | |||||
| MPPT Operating Voltage Range [V] | 80 – 550 | |||||
| MPPT Operating Voltage Range [V] (Full load) | 204 – 500 | 204 – 500 | 211 – 550 | 257 – 500 | 305 – 500 | |
| Max. Input Current [A] | 26 / 14 | 26 / 14 | 26 / 14 | 26 / 14 | 26 / 14 | |
| Short-circuit Current [A] | 44 / 22 | 44 / 22 | 44 / 22 | 44 / 22 | 44 / 22 | |
| No. of Independent MPPT Trackers | 2 | 2 | 2 | 2 | 2 | |
| No. of Strings per MPPT Tracker | 2/1 | 2/1 | 2/1 | 2/1 | 2/1 | |
| BATTERY CONNECTION | ||||||
| Battery Type | LFP (LiFePO4) | |||||
| Battery Voltage Range [V] | 85 – 460 | |||||
| Rated Battery Voltage [V] | 350 | |||||
| Max. Continuous Charge/ Discharge Current [A] | 25 | |||||
| Max. Continuous Charge/ Discharge Power [W] (For H1)(For AC1) | 5700/4180 | 8550/6270 | 11400/8360 | 14400/10560 | 17100/12540 | |
| Max. Discharge Current (60s) [A] | 60 | |||||
| OUTPUT (AC GRID) | ||||||
| Max. AC Input Power [VA] | 3800 | 5700 | 7600 | 9600 | 11400 | |
| Max. AC Input Current [A] | 16 | 24 | 32 | 40 | 48 | |
| Input Voltage Range [V] | 211 – 264 | |||||
| Input Frequency Range [Hz] | 57 – 63 | |||||
| Rated Output Power [W] | 3800 | 5700 | 7600 | 9600 | 11400 | |
| Max. Output Apparent Power [VA] | 3800 | 5700 | 7600 | 9600 | 11400 | |
| Rated Output Current [A] | 15.8 | 23.8 | 31.7 | 40.0 | 47.5 | |
| Max. Output Current [A] | 15.8 | 23.8 | 31.7 | 40.0 | 47.5 | |
| Rated Grid Voltage [V] | 240 (211 – 264) | |||||
| Rated Grid Frequency [Hz] | 57 – 63 | |||||
| Power Factor | >0.99 (Adjustable from 0.8 leading to 0.8 lagging) | |||||
| THDi [%] | <3 @rated power | |||||
| AC OUTPUT (BACKUP) | ||||||
| Rated Output Power [W] | 11400 | |||||
| Rated output power (different batteries) [kW] | 5700 @H2 Battery | |||||
| 8400 @H3 Battery | ||||||
| 11400 @H4 Battery 11400 @H5 Battery | ||||||
| 11400 @H6 Battery (Only for non US mainland) 11400 @H7 Battery (Only for non US mainland) | ||||||
| Max. Output Apparent Power [VA] | 12540 | |||||
| Peak Output Apparent Power [VA] | 13680 | |||||
| Peak Output Apparent Power [VA] (10min) | 15390 | |||||
| Max. Continuous Output Current [A] | 52.3 | |||||
| UA [A] | 160 | |||||
| Rated Output Voltage [V] | 120 / 240 | |||||
| Load Start Capacity [A] LRA | 50 @H2 Battery | |||||
| 75 @H3 Battery | ||||||
| 110 @H4 Battery | ||||||
| 160 @H5 Battery | ||||||
| 160 @H6 Battery (Only for non US mainland) | ||||||
| 160 @H7 Battery (Only for non US mainland) | ||||||
| THDv (Linear Load) [%] | <3 @rated power | |||||
| Imbalance for Split-Phase Loads [%] | 100 | |||||
| EFFICIENCY | ||||||
| CEC Efficiency [%] | 97.0 | |||||
| Max. Efficiency [%] | 97.60 | |||||
| Max. Battery Discharge Efficiency (BAT to AC) (@full load, 340Vdc) [%] | 97.40 | |||||
| PROTECTION | ||||||
| Insulation Monitoring | YES | |||||
| Residual Current Monitoring | YES | |||||
| DC Reverse Polarity Protection | YES | |||||
| Anti-islanding Protection | YES | |||||
| AC Short Circuit Protection | YES | |||||
| AC Overcurrent / Overvoltage Protection | YES | |||||
| DC Switch | YES | |||||
| SPD | DC: Type 1 & Type 2 | |||||
| AFCI | YES | |||||
| GENERAL DATA | ||||||
| Topology | Transformerless | |||||
| Cooling Method | Natural convection | |||||
| Noise Emission [dB] | ≤ 35 | |||||
| Max. Operating Altitude [m] | 9843 / 3000 (Derating above 6560 / 2000) | |||||
| Operating Temperature [°C] (North America) | -13 ~ +131 / -25 ~ +55 (Derating above 104 / 40) | |||||
| Operating Temperature [°C] (Non-North America) | 14 ~ +131 / 10 ~ +55 (Derating above 104 / 40) | |||||
| Humidity [%] | 0 ~ 100 (No Condensation) | |||||
| Protection Degree | Type 4X | |||||
| Standby consumption [W] | <25 | |||||
| Monitoring Module | WiFi, LAN | |||||
| Communication | CAN2.0, RS485, Meter, CT, ISO alarm, SUNSPEC | |||||
| Display | LCD, App, Website | |||||
| Warranty [Years] | 12.5 | |||||
| STANDARDS COMPLIANCE (MORE AVAILABLE UPON REQUEST) | ||||||
| Safety | UL1741 SA, UL1741 SB, UL1741 CRD, HECO SRD-V2.0, CSA C22.2 No.107.1-16, UL1998, UL1699B, Rule 21, ANSI/CAN/UL9540 | |||||
| EMC | FCC part15 CLASS B | |||||
| Grid Regulation | IEEE1547-2018, IEEE1547a-2020, IEEE1547.1-2020 | |||||
| MODEL | AIO-US-EQL2 | AIO-US-EQL3 | AIO-US-EQL4 | AIO-US-EQL5 | AIO-US-EQL6 | AIO-US-EQL7 |
| MECHANICAL CHARACTERISTICS | ||||||
| Dimensions (W*H*D) [mm] | 570*848*380 | 570*986*380 | 570*1124*380 | 570*1262*380 | 570*1400*380 | 570*1538*380 |
| Dimensions (W*H*D) [inch] | 22.44*33.4*15.0 | 22.44*33.8*15.0 | 22.44*44.3*15.0 | 22.44*49.7*15.0 | 22.44*55.1*15.0 | 22.44*60.6*15.5 |
| Weight [kg/lbs] | 128.3 / 282.9 | 165.2 / 364.2 | 202.1 / 445.6 | 239.0 / 526.9 | 275.9 / 608.3 | 312.8 / 689.6 |
