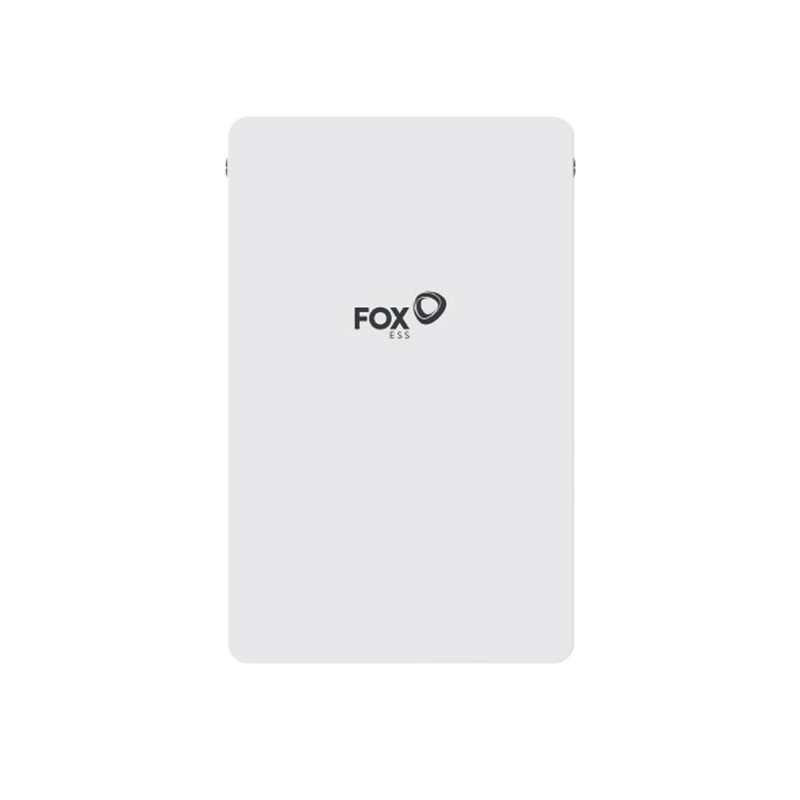

| Model | FOX HUB G2 |
| GENERAL ELECTRICAL | |
|---|---|
| AC Current (Nominal) [A] | 200 |
| AC Input Voltage (Nominal) [Vac] | 240 |
| AC Output Voltage (Nominal) [Vac] | 120/240 |
| Rated AC Power [kW] | 48 |
| AC Voltage Range [Vac] | 211 ~ 264 |
| AC Frequency (Nominal) [Hz] | 60 |
| AC Frequency Range [Hz] | 57 ~ 63 |
| Microgrid Interconnection Device Rated Current [A] | 200 |
| Short-Circuit Breaking Capacity [kA] | 22 |
| Grid Disconnection Switchover Time [ms] | <20 |
| EXTERNAL CONNECTION | |
| Solar terminal [A] | 80 |
| FOX Inverter [A] | 80 |
| Smart Circuits 1 (240V) [A] | 80 |
| Smart Circuit 2, 3 (120V) [A] | 80 |
| Non-Backup Load [A] | 200 |
| Backup Load Terminal [A] | 200 |
| Busbar Rating [A] | 280 |
| GENERATOR (Optional) | |
| Maximum Rated AC Power [kW] | 48 |
| AC Voltage Range [Vac] | 211 ~ 264 |
| Maximum Continuous Input Current [Adc] | 200 |
| Dry Contact Switch Voltage Rating [Vac/Vdc] | 250/30 |
| Dry Contact Switch Current Rating [A] | 0.5(250Vac) / 3(30Vdc) |
| 2-wire Start Switch | Yes |
| ADDITIONAL FEATURES | |
| Maximum Number of Inverter | 4 |
| Communication | CAN, RS485 |
| Energy Meter (for Import/Export) [%] | 0.5 accuracy |
| STANDARD COMPLIANCE | |
| Safety | UL67, UL869A, UL916, UL1741, CSA22.2 NO.107 |
| Emissions | FCC part 15 class B |
| INSTALLATION SPECIFICATIONS | |
| Dimensions (H*W*D) [inch/mm] | 26.2*17.4*6.2 / 665*443*156.6 |
| Weight [lbs/kg] | 37.4 / 17 |
| Supported Inverters | FOX US Series |
| Grid Conduit Size / AWG Range | 2.5″ Conduits / 6AWG – 250kcmil |
| Generator Input Conduit Size / AWG Range | 2.5″ Conduits / 6 AWG – 250kcmil |
| Communication Conduit Size / AWG Range | 1″ Conduits / 24AWG – 16AWG |
| Cooling | Natural convection |
| Noise [dB] | <35 |
| Operating Temperature Range [°F/°C] | -4 ~ +122 / -20 ~ +50 |
| Protection Rating | Type 3R |
| Warranty [year] | 12.5 |
